corn puff snack grits maker puff food breakfast cereal snacks gritz machine/Corn Flakes grit milling machine

  • >=1 Sets
Model Number:
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)


Graphic customization (Min. Order: 1 Sets)
Motor (Min. Order: 1 Sets) Less
$2,580.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Quick Details
Applicable Industries:
Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops
Place of Origin:
Shandong, China
Brand Name:
Hua Lu Jin Gu
Production Capacity:
500Kg/hour, 500kg/h
After-sales Service Provided:
Video technical support
Product Name:
corn maize grain grits/flour milling machine
Corn Maize peeling and Grits milling
Suit for:
Corn, wheat, rice paddy, Millet,Soybean etc
Final products:
Grits/powder/cornmeal or flour
Driven Way:
Electricty Motor
Processing type:
Wet method(corn),Dry method(except corn)
1 Set
Spare parts:
Peeling screen, Mesh grits sieve,rag, brush
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1.We will pack by the protect film inner, water-repellent plastic outside.
2.Then put into export standard plywood box.
3.The machine will be fixed by steel rope in the container. Make sure it is in good condition when it arrives.
Picture Example:
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Video Description
Product Description
Corn degerminator corn powder making machine mas grains machine corn mill for puff maize pellet milling machine

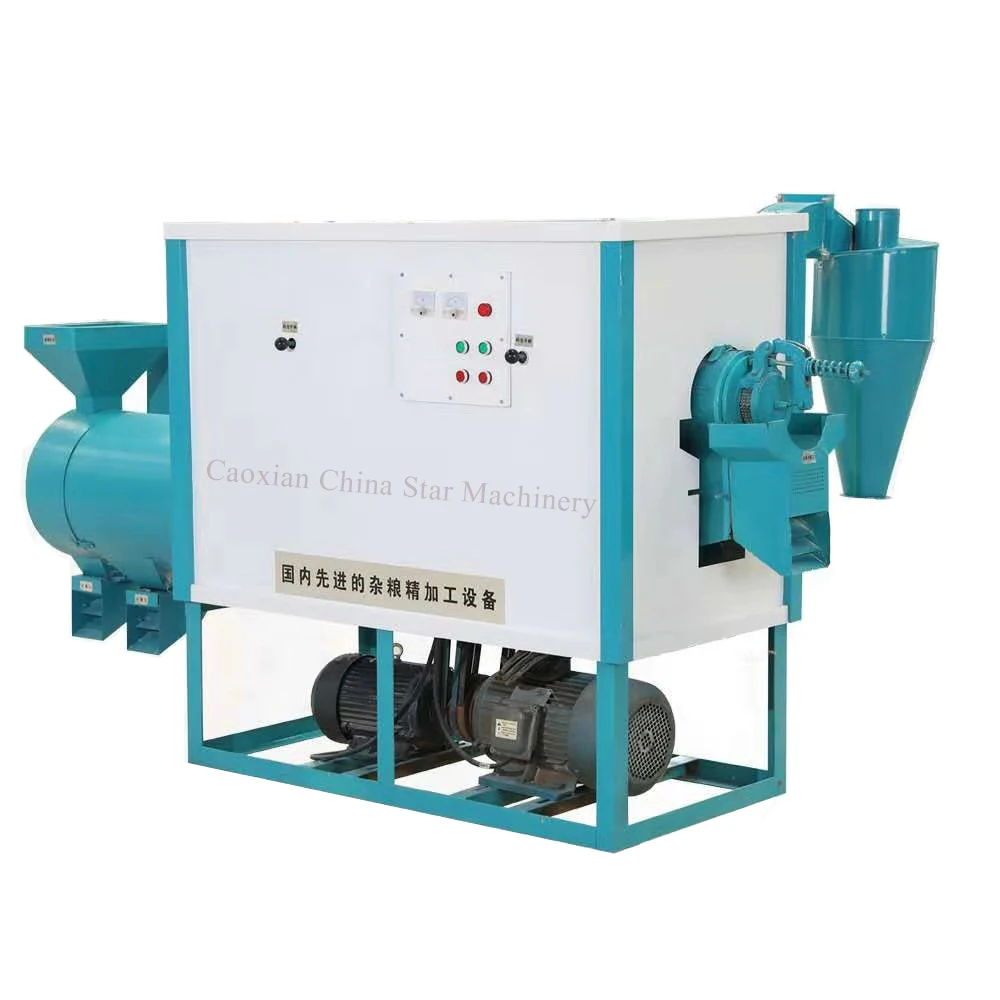

ZX-T3 Combined Maize peeling and grits grinding machine is a multiple food grains processing machine,including peeling machine and grinding machine, each machine can work independently,using a 7.5 kw motor and 4kw fan(medium sized) as power and three phase electricity,consists of peeling system, crushing system, grading system,and four times wind dust controlling system,integrates corn cleaning, peeling, degerming, root removing, grinding, gritting, screening and polishing in one machine. can finished clean one time,Final get the Grits of various particle sizes and high precision corn flour.Corn grits are in even size,round shape,no sharp edges,look like millet, Clean, no skin,no flour,no germ,no black hilum.

1.Process way: adopt wet descaling(maize),dry descaling(other grains) Once molding.not only can process corn, wheat, rice, millet,sorghum, soybeans ,pepper slices and other grains dehulling, granulation and flour.
2.the size of grits is adjusted by the slag-making handle, and the distance between the two teeth in slag making, which can be controlled to the size of grits (ballast),The corn kernel after dehulling collected by the machine through the wind channel of the built-in fan and the micro-skin of the corn kernel.
3.Our machinery: Beautiful appearance, compact structure,convenient operation, reliable performance, green and environmental protection, suitable for export,no risk for after-sale service.

It is as the corn, wheat and beans processing enterprises and feed processing enterprises preferred machine. It is also the first choice for foreign processing households in rural areas and urban-rural fringe areas. Mobile operations and fixed operations are both fine. Welcome to our factory for testing maize mill machines, You will feel great technology,nice maize grits. More videos and pictures,please contact us freely..

Products Show
Peeling machin
it is a preparation stage to get peeled clean corn kernel which is about half or less than half size corn seed, in the processing of
peeling,removing corn skin,germ,black hulim, broken big maize sizes,4mm-6mm, the broken maize are in even size,round shape,no
sharp edges,clean, no skin,no germ,no black hilum,golden color.These are the largest pieces of broken maize free of husk and germ.
Main uses are Cornflakes or making porridge, Direct cooking and consumption (known as Samp in southern Africa).
Grits/flour milling machine
Peeled clean corn kernel are milled into even
mesh sizes middle grits,small grits,and corn flour(default,40mesh),grits/meal and flour separating,grits/meal without flour,golden color,look like millet,can be enter supermarket directly and very popular on the market with high quality.The applications of this grade ranges from ready-to-eat cereals to brewing adjuncts and from snacks/extruded raw material to foods dressers. Apart from food industry,it serves as best ready-to-serve for bird,animals like pigs,horse,Goat,Cattle,Chick,Fish etc.
1#: Big grits:getting after peeling process,a corn is broken into 3-5 corn kernel,removing corn skin,corn germ,in this process, the accoutation is about 75-80% broken corn,15-20% corn bran.
2#,3#,4#:3 grades corn grits and corn flour getting after milling process and grading can gets different mesh size of corn grits by adjusting size handwheel. the accoutation is about 80-90% corn grits,10% corn flour.
Eg:100kg dry corn,production output is about 60-70kg corn grits,10kg corn flour, 20kg corn bran.
It depends on Corn structure.Please check the corn structure below:
                                                                         Corn structure
ZX-T3 is a multifuntion machine, not only corn,Other grains can be processed.
wheat,millet,soybean,peas,rice etc also can be processed.
Packing & Delivery

Packing Details : Pack by the protect film inner, water-repellent plastic outside, then put into the wooden case.
Delivery Details : Some type has stock,
Customized machine within 10 days after receive the deposit.

Our Service

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service
* Training how to instal the machine, training how to use the machine and spare parts support.
* Engineers available to service machinery overseas.
* One year warranty.

Our Company

We are a manufacturer professional to make food grain processing machinery.our products are : Corn/Maize grits grinding machine , Corn/Maize flour mill machines, Beans/Cereal peeling machines, Rice/Millet mill machines, Wheat flour mill machines, and different capacity full-automatic combined sets for corn/wheat flour mill machineries etc. We not only provide our catalogue product around the world but also we aim to provide perfect solution to customer in food grain processing industry. we insist to design and produce high technical machines.You feedback us your requirements or an idea, we will design for you and make a machine just for your market. Our products have high quality and high capacity, consistant stability and long performance life. Our technologies are very experienced in installation and debugging the machineries.Engineers available to service machinery overseas.


Q: Are you trading company or manufacturer ?

A: We are factory. We are at Shandong, welcome to visit our factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 40% T/T in advance ,balance before shippment.
